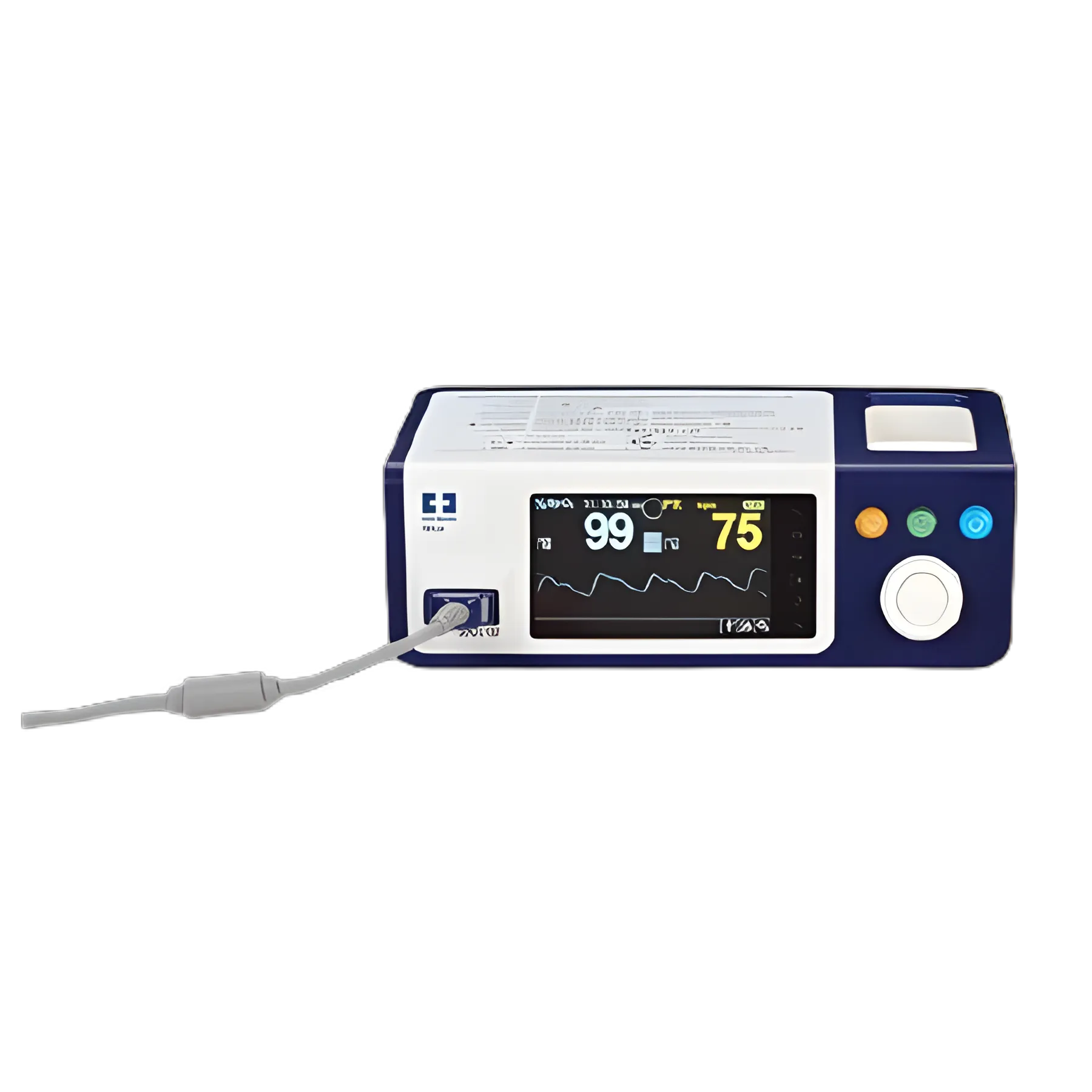

The Nellcor™ Bedside SpO2 patient monitoring system incorporates the latest Nellcor™ digital signal processing technology for accurate, reliable readings even during low perfusion and other forms of signal interference, providing clinicians with access to the most critical information regarding their patients’ respiratory status
With improved functionality, including continuous SpO2 and pulse rate monitoring, trending data and SatSeconds alarm management, clinicians have the information they need to detect respiratory complications earlier and intervene sooner
Simple, intuitive operation and space-saving design
Distinctive digital signal processing technology from Covidien
Variable pitch beep tone which enables clinicians to hear pointby-point changes in SpO2
Five-hour battery life with an optional ten-hour battery
96-hour trend memory captured every four seconds
Patient trend data can be stored on a PC for archive and analysis
Easy-to-use jog dial for simple navigation and control of the display and monitoring system functions
Compact, portable, lightweight, durable, easy-to-transport design with a built-in handle
Multiple-language graphical user interface
Capable of displaying plethysmographic waveforms, pulse amplitude, and current measured SpO2 and pulse rate
Multicolor display screen with a black background which provides ideal contrast
Back-up audible alarm
On-screen help messages to assist the user in the use of the monitor
82 X 165 X 255 mm Size
1% to 100% SpO2, 20 to 250 beats per minute (bpm) pulse rate, 0.03% to 20% pulse amplitude measurement range
Operating Temperature - Instrument: 5°C to 40°C; transport/storage temperature: -20°C to 60°C
